Checking for flaws in spray foam insulation using infrared and blower door

InfraMation 2015 Application Paper Submission

Randy Kiez

ATLAS Infrared Inc. (exp Services Inc.)

ABSTRACT

Spray applied polyurethane foam (SPF) is recognized in the construction community as having superior  thermal insulation properties, high resistance to air flow through it, and (depending on the type) good  vapour diffusion control, as well as other desirable characteristics. SPF is often specified for use in high  performance buildings, retrofits, and in hard to reach locations where 'typical' products may be difficult to  install. However gaps in the cured product may permit water vapour, carried by air flow, to be deposited in  the building 'envelope' where it can condense and cause problems. This can be a critical flaw especially  when it is intended to be part of the air barrier system.

INTRODUCTION

Due to is monolithic nature, SPF is often perceived as having infallible air control however this is not  necessarily the case. Errors in its application and movement of the substrate against which it is applied  can compromise its performance.

Using a blower door(s) to manipulate air pressure within building and an infrared camera to capture the  subsequent air movement can be very effective to pinpoint air leakage areas. The technique is useful for  diagnosing problems with existing SPF applications as well as for quality control of newly applied SPF.

By isolating the problem targeted repairs can be made rather than undisciplined and overly disruptive  tear-outs.

BLOWER DOOR

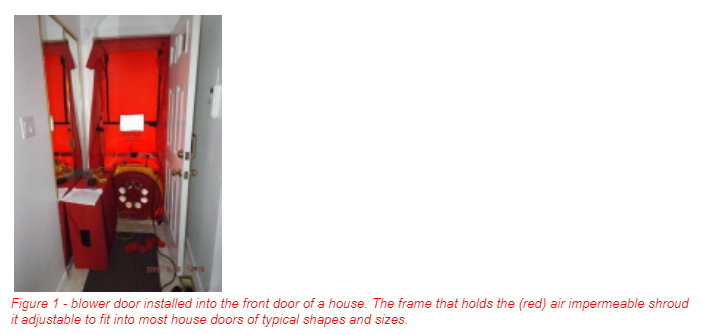

Blower doors are calibrated fans that are fitted into a building opening (ie. door) and are used to create a  positive or negative pressure (depending on the problem at hand) between the outdoors and the inside of  the building. In single family residential, the focus of this paper, a single fan is usually all that is needed. A blower door setup is also equipped with a manometer to take air pressure readings.

AIR LEAKAGE PATTERNS

Air leakage visible in an infrared camera appears as wispy lines as it passes over a solid surface.

The advantages of using a blower door to induce air movement include:

• Controllable air pressure - the thermographer is not reliant on turning on house fans or waiting for  wind to move air through gaps in the building envelope.
• There can be a much narrower temperature difference ('Delta T') between the exterior and interior environments down to even just a few degrees and the passing air will still create a recognizable  thermal pattern.

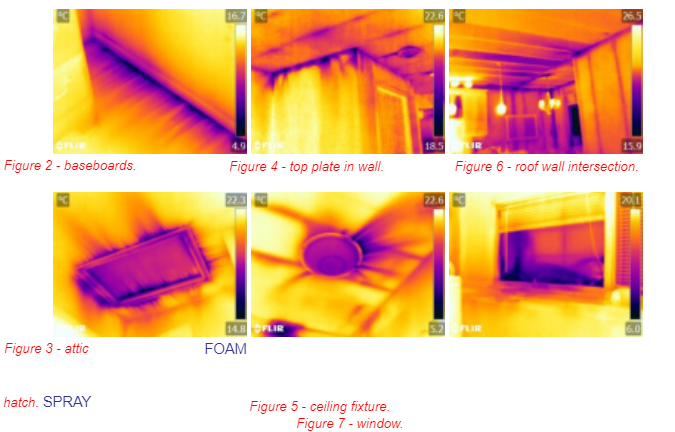

The following images are examples of what induced air leakage looks like.

Spray polyurethane foam is a plastic made by the precise mixing two chemicals each of which are  shipped in liquid form in separate barrels to the job site. The spray foam apparatus consists of hoses long  enough to get into the building at the end of which is a mixing nozzle. As the separate chemicals exit the  nozzle they mix and quickly react in an exothermic reaction to create a foam that will adhere aggressively  to suitable substrates.

The various SPF foam types are differentiated by their internal cell structures and weights and each type  has its own advantages depending on intended usage.

'Closed cell foam' is rigid in nature and has air barrier and vapour retarding properties. Its internal cells  remain closed trapping the blowing agent gas and yielding a high R-value insulation in comparison to  other insulations. The high density variety is often specified for roofing applications while the medium  density is used in wall cavity fills, attics and areas such as basements that may be subject to liquid water.

'Open cell foam' is more flexible than the closed cell variety and its cells are filled with air. It is referred to  as low density foam. It is an air barrier at certain thickness but is vapour open and may require a vapour  retarder depending on climate zone. It is often used in wall cavities and attics.

APPLICATION CHALLENGES

SPF must be applied within a range of specified ambient environmental parameters onto an appropriate prepared surface in accordance with the manufacturer's instructions.

While applicators generally receive product training and certification, SPF is still a field applied product  subject to flaws in application. There are two general types of flaws in SPF application:

1. Applicator negligence.

2. Flaws that could be attributable to the rapid expansion of the product. In general, these occur  around changes in geometry such as at the corners of framing members.

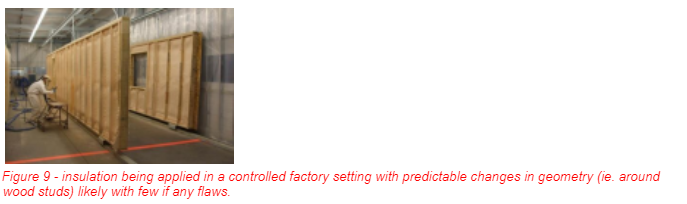

It is relatively easy to apply SPF to consistent substrates that do not have changes in geometry and these  areas seldom have problems.

BLOWER DOOR SAFETY

This paper is not intended to give instruction on the correct and safe use of blower doors however one  precaution should duly be stressed.

If creating negative pressure within the building combustion gases from furnaces, boilers, water heaters,  etc, and ashes and burning embers from wood burning appliances can be drawn into the building with  dire consequences. Those who undertake using a blower door should get proper and adequate training.

TESTING FOR AIR LEAKAGE IN THE SPRAY FOAM APPLICATION

The following is a suggested method for testing:

1. Walk the building closing all the windows, doors and other openings that would require the blower door to run at a higher than necessary speed.

2. Temporarily shut down appliances as noted in 'Blower Door Safety' above. Make sure to turn them back on (especially in freezing weather).

3. Set up the blower door.

4. Do a thermal scan without the blower door running to baseline the known or suspected problem area(s).

5. Start the blower door. Note that it is prudent to record the blower door readings using the manometer and file the results. If there is a subsequent visit the client may ask if there was an  improvement in air leakage control and without initial readings this would not be known.

6. With a narrow Delta T let the blower door run for a while; with a large Delta T thermal scanning can  begin within a few minutes. Be patient - with air leakage the results develop like a Polaroid picture.

7. Record all interesting images and even those that are not necessarily interesting but show something.

8. Do the report and send out as soon as possible.

9. If at all possible, be there for the demolition of suspected faulty areas or ask the client for pictures as validation of the thermal findings.

TESTING FOR AIR LEAKAGE DURING THE SPRAY FOAM APPLICATION

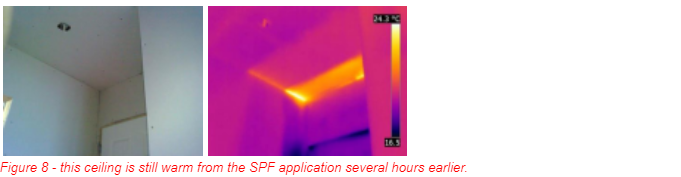

It may be tempting to doing the actual testing simultaneously with the spray foam application, and while  the author admittedly does not have experience in this department, it is not a recommenced practice.

The foam spraying process releases tiny particles of foam which will adhere to anything and everything that it touches including the tester's equipment. Further, applicators wear respirators for a reason and  breathing the gases is not advisable especially in front of a blower door which is concentrating the air flow  in one location.

IMAGES AND EXPLANATIONS OF VARIOUS SPRAY FOAM DEFECTS

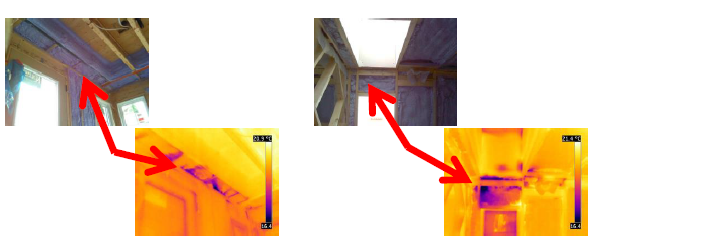

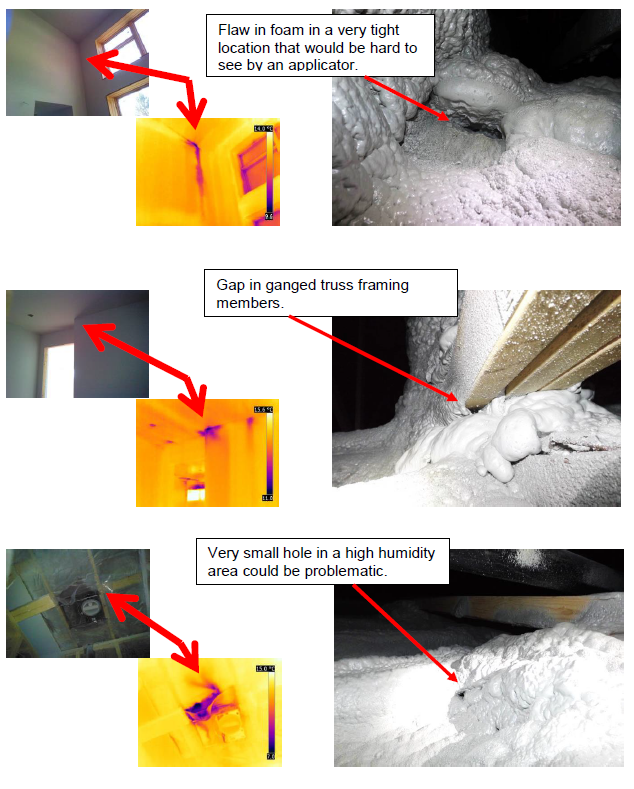

1. New House - 2x4 Wood Frame Construction

Background: To save internal real estate the builder used 2x4 framing (rather than 2x6) and to  make the home comparatively energy efficient used 2 pound spray foam in the walls and vaulted  ceiling. There was substantial air leakage in the ceiling even to the extent of moving the Code  required polyethylene vapour retarder. The builder wanted to proof the quality of the SPF application  and was aware of the consequences of concealed air leakage at the upper reaches of a tall ceiling in  a two storey house (ie. stack effect and condensation)

Solution: Builder had the spray foam company touch up the areas that had air leakage which was easy to do as the ceiling boards were not installed.

Newer House - Staggered Stud Construction

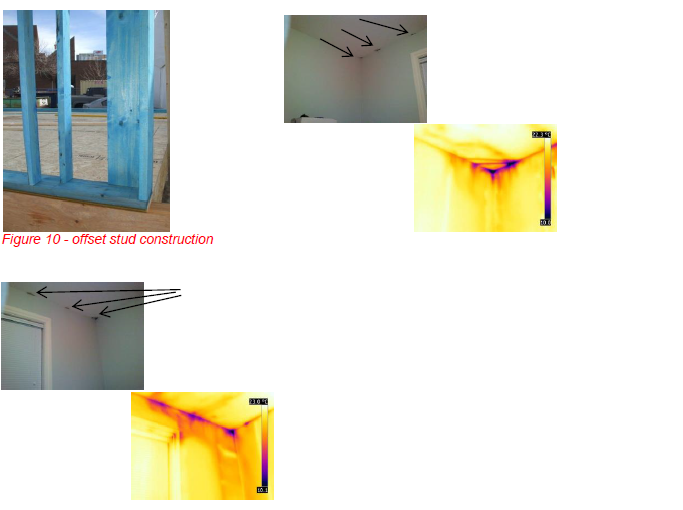

Background: Air leakage within the wall cavity was causing cools spots creating conditions for  mould to form. The SPF applicator was reportedly inexperienced and seems to have missed  covering the top plates. Staggered stud construction is a method to increase the thickness of a wall  so that it can hold more insulation (also called offset stud). Mould at the junction of the wall and  ceiling is indicated at the arrows and wispy lines of air leakage within the wall cavity could be seen at  every mould spot.

Solution: The home owner was upset with the applicator but realized there was not much he could  do. In reality, the mould occurred during the initial drying period of the home when interior humidity  was high. This condition may be controllable by having a less humid indoor environment.

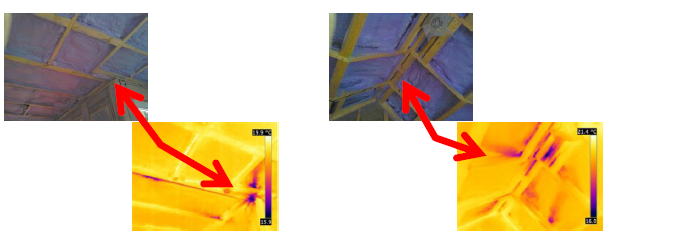

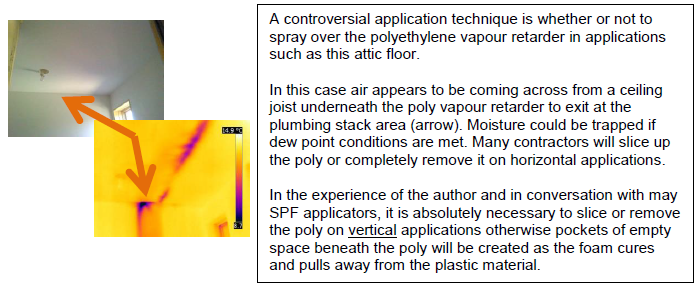

Existing House - $1.5 Mil. Dollar Renovation

Background: Air leakage in the ceiling plane. The contractor was very picky as was their client who wanted to create an energy efficient home.

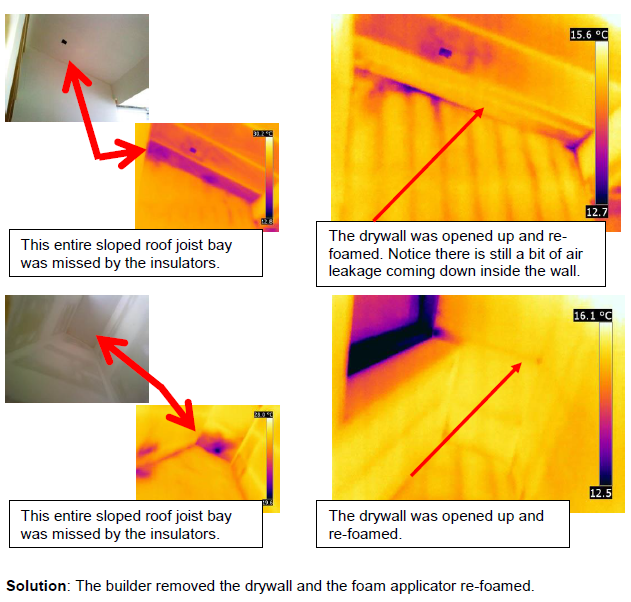

New House - $4.5 Mil. Dollar

Background: Shoddy installation by the foam contractor.

CONCLUSION

1. Spray foam applications can be tested for air tightness integrity using a blower door and infrared camera combination. In fact, these tools are inseparable for building diagnostics of this nature.

2. Changes in geometry between building materials is often a place where air leakage occurs through  gaps in the SPF.

3. Spray foam must have a good substrate for proper adhesion.

4. Spray foam must be applied at the right environmental conditions

REFERENCES

Guidance on Best Practices for the Installation of Spray Polyurethane Foam, Spray Foam Coalition of the  American Chemistry Council’s Center for the Polyurethanes Industry, 2012

www.polyurethane.americanchemistry.com

ABOUT THE AUTHOR

Randy is a building science technician with Exp Services Inc., and also operates his own company, ATLAS Infrared, through which the houses in this presentation were investigated. Randy has done in excess of two thousand blower doors and recently received Level III thermography certification. He has been a thermographer for over six years and a residential energy advisor for thirteen years.
