Preventing and Identifying Potential Failures of Dead Break Elbows in Wind Farm Applications

InfraMation 2015 Application Paper Submission

Brian Peyres

Sr. High Voltage Reliability Engineer, EDP Renewables

ABSTRACT

Dead break elbow terminations are commonly used in many wind farm and utility applications.  When constructed properly, dead breaks also known as “T-Body’s” can be very reliable. Failures of this type of termination can be very dangerous and costly with regards to adjacent equipment damage and  service interruptions. What are some of the causes of failure? How can we prevent failure? How do we interpret an observed anomaly?

INTRODUCTION

This article will familiarize you with dread break elbow construction and its applications. Wind farms have  been increasing in number globally in the last decade, therefore a large number of transformers, junction  boxes and isolation switches have been constructed using dead break elbows. Unfortunately some  components have been made with lower standards to meet the recent demands. In addition to supply  concerns, lack of experience by installers has resulted in costly failures for many owners. The goal of this  paper is to share valuable lessons learned and provide insight on how to prevent possible failures.

FAILURES

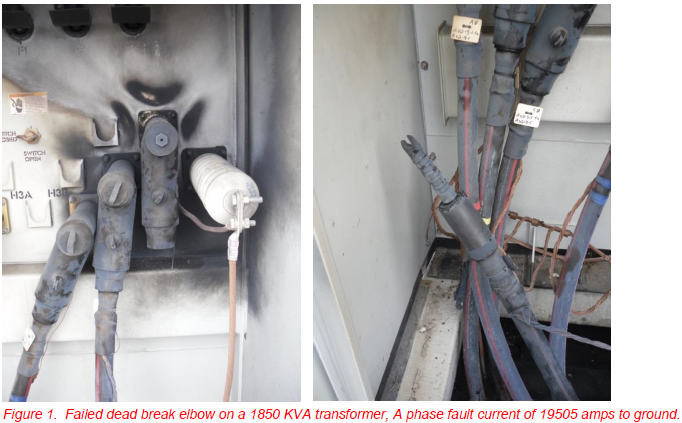

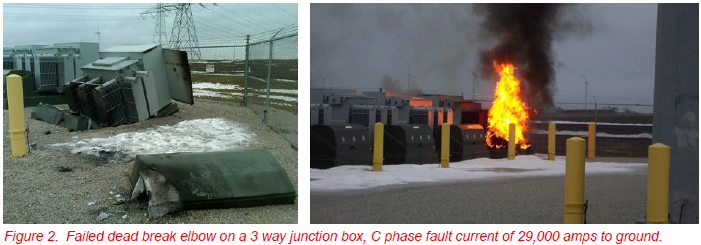

Figure 1 is an example of a failed dead break connection. This type of failure is a common occurrence  when construction of a dead break elbow is not conducted properly. Damage in this example resulted in  losing 25MW of possible generation for roughly 15 hours

ROOT CAUSE OF FAILURES

Reason #1 Craftsmanship

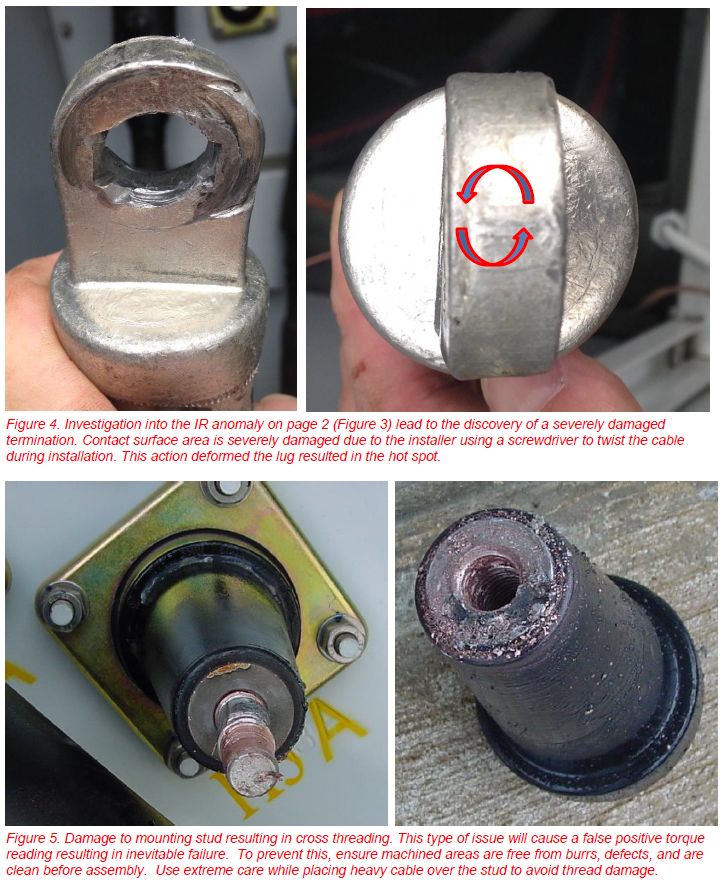

Poor assembly techniques are the primary reason dead break connections fail. Inexperience, failure to  follow manufactures instructions and working with heavy cable that is difficult to form can all lead to  termination failures.

ROOT CAUSE OF FAILURES

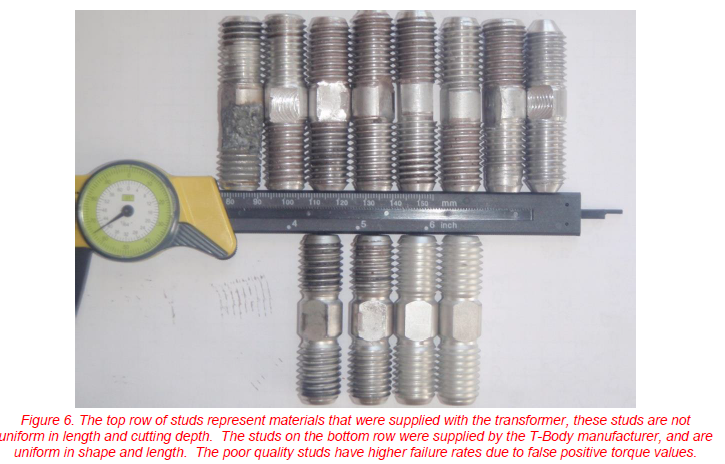

Reason #2 Material defects

ROOT CAUSE OF FAILURES

Reason #3 Environmental Stresses

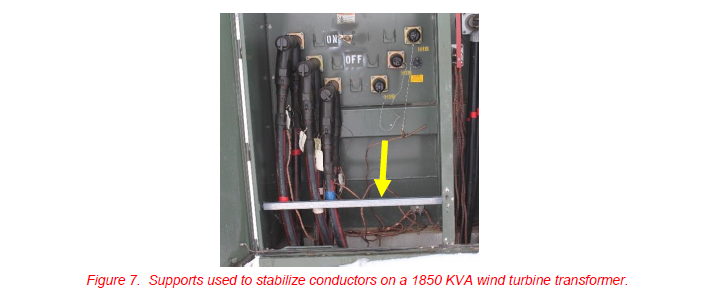

Thermal cycling of transformers can stress termination integrity due to expansion, contraction, and  movement of materials. Cables can be weighed down by heavy ice that accumulates in the dead space  below termination cabinets resulting in stresses on the cable. Frost heaving of equipment in winter  months can also play a role in cable movement resulting in potential failure.

CASE STUDY

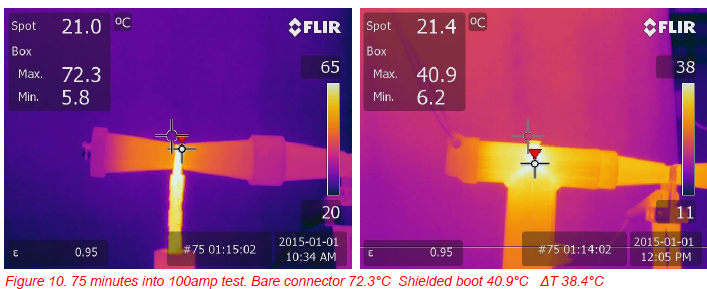

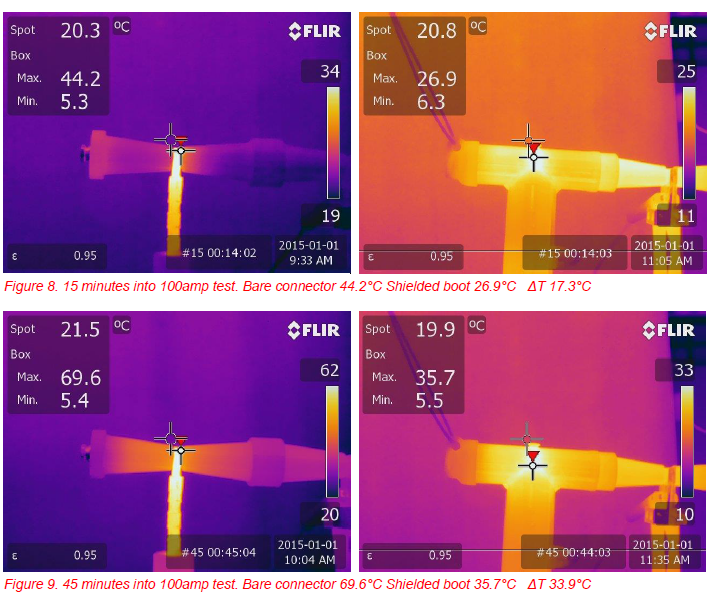

The dead break elbow is a fully submersible component with heavy shielding material that protects the  termination. The design makes it difficult to see or determine if a potential problem exist. Determining  the cause of an anomaly is impossible without disassembly of the elbow. The following case study illustrates differences between exposed and covered terminations with a termination defect. In the first  series of tests, a termination was intentionally damaged, measured for connection resistance and  subjected to 100 amps of current for a period of 75 minutes. IR images were captured illustrating the  results of the high resistance connection. The second series of images illustrates the same termination  with the shielding boot installed to demonstrate the heating pattern and delta between the two areas.  Bushings installed in oil filled transformers may act as a heat sink resulting in a wider Delta T between the  actual fault location and the observed temperature.

Note: The bare aluminum lug was painted with high temperature flat black paint allowing similar emissivity  settings between the two images.

SUMMARY

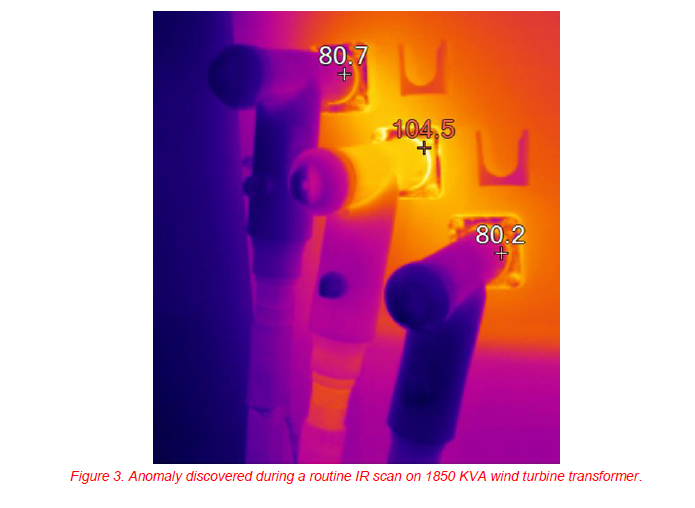

IR imaging is a key tool in the prevention of dead break elbow failures when used on a routine basis. Workers should understand the mechanics of constructing this type of termination and be mindful of the  small details that should not be overlooked. The case study should provide the user a good insight to the  heat losses typically seen in a dead break elbow when an anomaly is discovered.
